WORLD CLASS STRETCH / CLING FILM MAKING MACHINE

PE Stretch/ Cling Film Making Machine

Applications

  • Stretch Film
  • Cling Film
  • Protection Film
  • Biodegradable Film
  • Pallet Wrap Film
enquire now

Description:

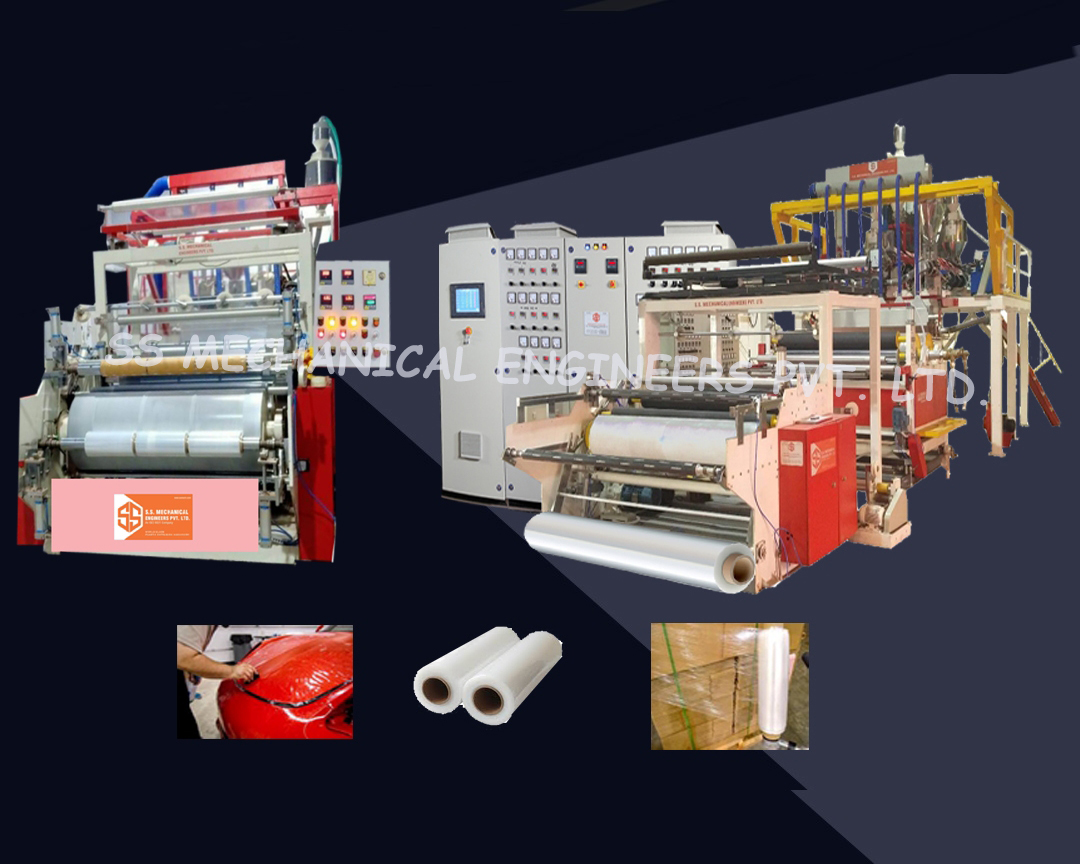

With our on going innovation and R&D, we have manufactured this CAST PE STRETCH FILM LINE/ Extrusion Machine which can effectively produce/ extrude cast stretch films, cling film, pallet wrap film, protection film, biodegradable film for packaging food of very high quality very cost effectively.

Features:

  • The Screw & Barrel made of Alloy Steel hardened with Plazma Nitriding
  • Imported T-Die made of special Mould Steel by high Precise process & treatment to ensure the best result
  • The Cast Chilled Roller Inside six way water circulation design and built-in spiral way to ensure roller surface temperature uniform
  • Roll Winder can be Moved forward & backward with auto tension control & Auto Roll Cutting system with PLC Control
  • In-Line Edge Trim Cutting & Re-feeding System

Specifications:

Model SS/SF-55/75-1000 SS/SF-45/65/45-1000 SS/SF-55/90/55-1500 SS/CF-75/100/75-2000 SS/CF-75/120/75-2500
Material LLD/LD/PIB LLD/LD/PIB LLD/LD/PIB LLD/LD/PIB LLD/LD/PIB
Screw Size (MM) 55/75 45/65/45 55/90/55 75/100/75 75/120/75
Film Width (MM) 1000 (Finished) 1000 (Finished) 1500 (Finished) 2000 (Finished) 2500 (Finished)
T-Die Width (MM) 1250 1250 1800 2300 2800
Max. Extrusion Output (Kg/Hr) 120 120 150-220 150-280 200-320
Winder Surface Roll Winder with Auto Cutting & Reel Changeover System by PLC
Machine Dimension (Mtrs) (L x W xH) 12 x 4 x 5 15 x 5 x 5.5 17 x 6 x 6 19 x 7 x 6.5 22 x 8 x 6.5
